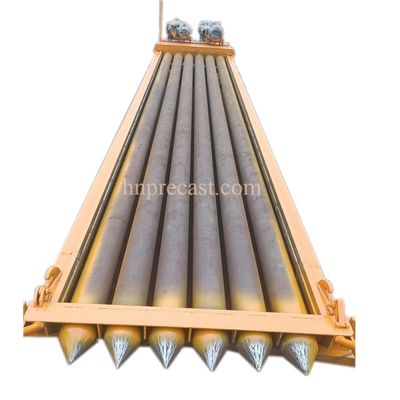

The concrete hollow core slab molding machine is developed and improved on the basis of traditional manual and ground anchor pull die mold equipment. The whole hollow core slab machine is composed of a driving system(winch)and a hollow core slab mold frame. The inner slab mold is equipped with a 6-7 pieces vibration tubes with vibatring cores that connect the vibrating motors. After pouring concrete into the mold, the motor drives the vibrating cores shaft to rotate at high speed and generate a strong and uniform internal eccentric vibration force. After the hollow core slabs formed, the winch will pull the mold out. And then, it starts the next production.
Main Technology details
- Slab thickness: 120-300mm
- Slab width:600,900,1200mm
- Slab length or span: 6000-7500mm
Benefits and Advantages:
- Low cost.
- Traditional technology； Simple structure, easy to operate
- Reliable quality and easy to maintain
