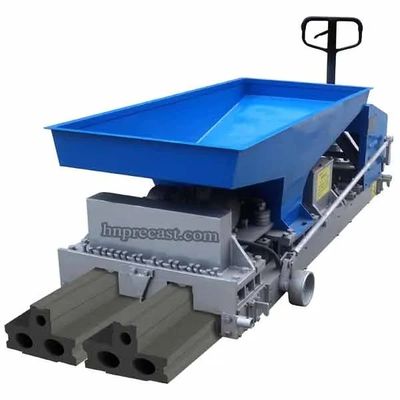

The t shape concrete hollow core wall panel extrusion machine is an unconventional extruder machine for making the T shape precast components to connect and install the wall panels in the position of room corners. The T components are mainly connecting the common flat wall panels such as 90,100,120mm,150mm,200mm panels, etc. The machine can produce one line or two lines of T shape panels according to the T shape sizes or customers' requirements.
The T concrete wall panel extruder machine work similarly to the normal flat wall panel extruder machine. It can make a very smooth and compact T joint wall panel with the extrusion process.
The extrusion process involves feeding dry mix concrete onto rotation screws by means of a moving electric hopper. The screws force the concrete through shaping plates and out of the rear of the extrusion machine, while holes are forced into the concrete panels by circular mandrels, trailing behind the screw augers. During the process, the extrusion machine is propelled by the backpressure of the concrete and together with various vibrating plates. It produces an extremely well-compacted concrete hollow core wall panel. We have a concrete hollow core wall panel extruder machine to make different sizes of wall panels.
Benefits of T joint Applications
The design of a T-shaped and L-shaped precast wall panel machine reduces the difficulty of installing the walls at the corners during the construction process. Saving more installation time and make the installed wall panel flatter and straighter. The connection between panels is more stable, which enhances the integrity and stability of the wall. For the overall structure of the house, this makes the corner wall and the main wall firmly and seamlessly connected, the wall panels and the joints, and the wall panels and the building beams form a whole, which reduces the corner wall cracks of the house.
