Precast concrete boundary wall machine

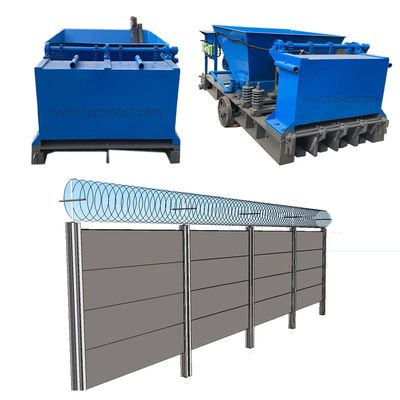

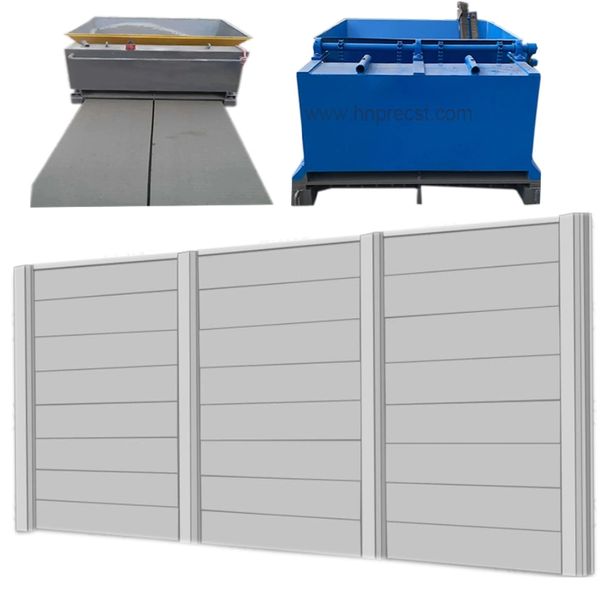

Pre-stressed Precast concrete Hollow core Boundary wall or Compound wall & Supporting ‘H’ column are made by concrete boundary wall machine includes Concrete extrusion or pushing machine & reinforced with Carbon steel wires, which work without the need of any Mould or Formwork for production. There are two types of hollow-core concrete  Boundary Wall Panels & it’s Supporting the ‘H’ Column made by our concrete compound wall machine：

1. Light-duty Boundary wall panel with suitable Supporting ‘H’ Column Size - Thickness 50 mm x 300 mm Width X 2 lane cast at a time per casting bed & Length can be cut as per requirement. Normally 2.1 meters are easy to lift by 2 persons while installation. Supporting ‘H’ Column Size 150 x 150mm with through & through Hole in the center for inserting, holding & fixing M. S. Angle for further extension of height with Barbed wires. Lightweight Boundary wall panel machine also available in the following

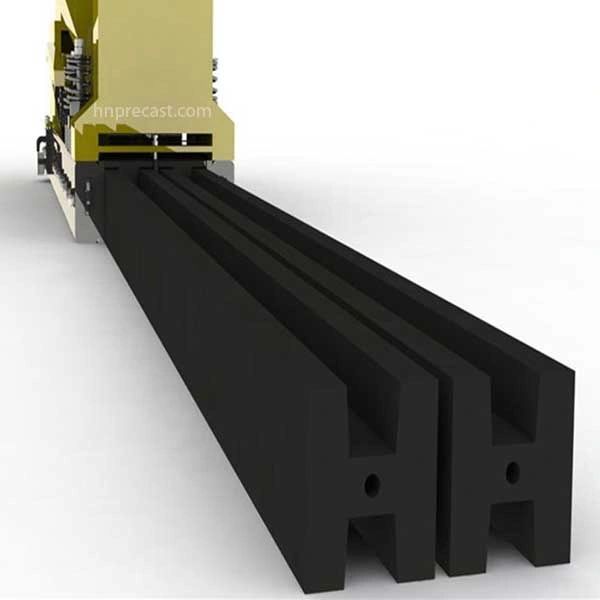

2. Heavy-duty Boundary wall panel with suitable Supporting ‘H’ Column Size - Thickness of 50, 65, 75, 80, 90, 100 & 120mm & Width can be 500mm to 600mm & Length can be cut as per requirement. For installation, you need lifting equipment as being heavy. Supporting ‘H’ Column for Heavy Duty: -(A) Supporting H’ Column Size 180 X 200 mm with interchangeable inserts to suit                                  the thickness of panels of 50 / 65 / 75 / 80mm,
   (B) Supporting H’ Column Size 180 X 230mm with interchangeable inserts to suit the thickness of panels of 90 / 100 / 120 mm thick with through & through Hole in the center for inserting, holding & fixing M.S. Angle for further extension of height with Barbed wires.
