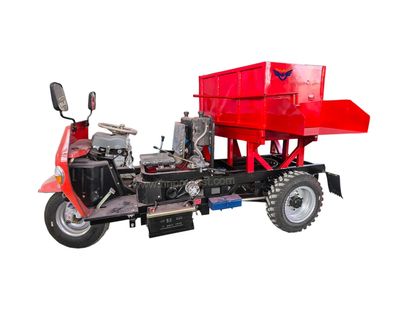

Diesel-Powered Concrete Feeding Dumper

 Against the backdrop of traditional electric feeding dumper struggling to meet the demands of high-intensity, continuous production and their rising maintenance costs becoming increasingly evident, our company proudly introduces the next-generation Diesel-Powered Feeding Dumper for Precast Yards. This product is designed to provide a robust, reliable, and economical material handling solution for medium to large precast concrete plants, decisively overcoming the core pain points of insufficient load capacity and high operating/maintenance costs associated with electric carriers.

At its heart, this diesel feeding dumper is powered by a high-performance 16.2 kW (22 HP) diesel engine with a rated speed of 2200 RPM, delivering consistent, stable, and high-torque output. Compared to electric equipment, it not only eliminates range anxiety but also excels in heavy-load start-ups and climbing. This ensures rapid, uninterrupted material transfer between the batching plant and various precast forming machines, significantly shortening production cycle times and directly raising the productivity ceiling of the entire precast facility.

This deisel driven concrete feeder is the ideal partner for the following high-output precast scenarios:

1. Precast Extruded Wall Panel / Hollow Core Slab Plants: Works in tandem with precast extruders and pushing machines, slipforming machine to provide continuous, uniform feeding, meeting the extremely high demand for material supply stability in long-line bed production methods.
2. Various Precast Component Mold Production Lines: Efficiently shuttles between the batching plant and multiple mold filling stations, reducing wait times and accelerating mold turnover rates.
3. Large Precast Composite Slab, Staircase, Beam & Column Plants: Its powerful load capacity easily handles the demand for single-batch transportation of large volumes of concrete, serving the production of large-sized elements.

• Large-Capacity Hopper: Volume reaches 800 liters, with a maximum load capacity of 2000 kg. Large single-load capacity reduces round trips.
• Efficient Hydraulic Lifting: Utilizes a diesel-powered hydraulic system to achieve smooth, powerful hopper lifting and tipping. Ensures complete, thorough discharge with reliable operation.
• Robust Chassis & Running Gear: Equipped with front wheels 600-14 and rear wheels 700-16 industrial tires, offering strong load-bearing and good terrain passability. The 3-speed (including forward/reverse) transmission design adapts to varying distances and operational conditions within the plant.
• Convenient Electric Start: Features one-button electric ignition start-up, offering simple operation and quick response.

The vehicle design balances power with agility. Its external dimensions are a compact Length 3.2m x Width 1.6m x Height 1.9m, with an approximate weight of 1100 kg. This compact size allows for flexible maneuvering and turning within standard precast plant aisles, easily adapting to densely laid-out production environments.

• Power System: Diesel Engine, 16.2 kW / 22 HP, 2200 rpm
• Load Capacity: 2000 kg
• Hopper Capacity: 800 L
• Running Gear: Front Wheels 600-14, Rear Wheels 700-16
• Transmission: 3-speed (Forward/Reverse)
• Starting Method: Electric Start
• Overall Dimensions: 3200 x 1600 x 1900 mm
• Operating Weight: 1100 kg
