We Henan Wishes machinery and equipment co. has developed the precast wall panel lifter primarily designed to address the challenge of lifting cured precast extruded wall panels in the precast factory. Traditional lifting methods rely on manual labor using crowbars or lifting trolleys to separate cured panels from the production yard, which results in high labor intensity, low efficiency, and significant occupation of production space—ultimately prolonging the production cycle.

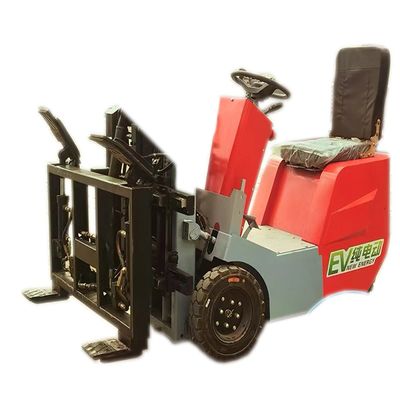

Equipped with a dedicated hydraulic clamping device at its front and operated by a single operator in a ride-on mode, this machine enables horizontal clamping of the precast panels. The hydraulic system securely clamps and picks up the panels, quickly separating them from the ground, ensuring a smooth and efficient process.
Key advantages of the precast panel handing equipment include:
- Labor Savings: Ride-on operation requires only one operator, greatly reducing manpower requirements.
- Product Protection: Minimizes damage to panels during the lifting process.
- Mobility: Compact structure and flexible steering adapt to various site conditions.
Forklift Key Technical Parameters:
- Lifting Capacity: 800 kg
- Maximum Travel Speed: 20 km/h
- Overall Dimensions (excluding forks): 1700 mm (L) × 1300 mm (W) × 1650 mm (H)
- Power Source: 48V/52Ah Lead-Acid Battery
- Continuous Operation Time: 8–10 hours
